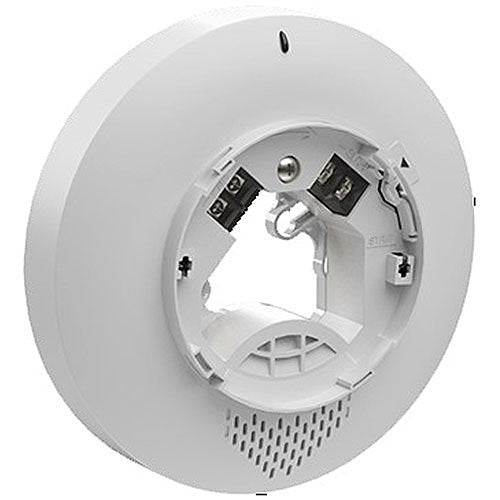

The Addressable Sounder Base (PAD300-SB) is a sounder base that may be utilized in a variety of applications. The base has a locking feature for the detector that may be used or removed in the field. Once the detector is removed, the sounder is accessible in the bottom of the unit.
The base has an independent sounder module that may be programmed as a single station, zone or all call sounder. The PAD300-SB passes through the sound pattern sent to the sounder, therefore it may reproduce in any pattern the power supply provides. The panel will support any combination of detectors or modules on the SLC.
The PAD300-SB does not consume an address on the loop and is fully programmable to operate with any input. Once activated the sounder will also follow the input from the power source and deactivate accordingly.
Main Features
UUKL Listed for Smoke Control
Does not require SLC Loop address
Terminals accept 22 to 12 AWG wire sizes
Integrated Sounder in base
UL464 and UL268 Listed
Sounder independent of detector, allows for a single station, grouped or all-call
May be mapped to any device connected to the control panel
LED to indicate that the unit is active
Separation included in the base for high and low voltage and power limited/non-power limited connections
Supports Class A, Class X and Class B wiring
