Description

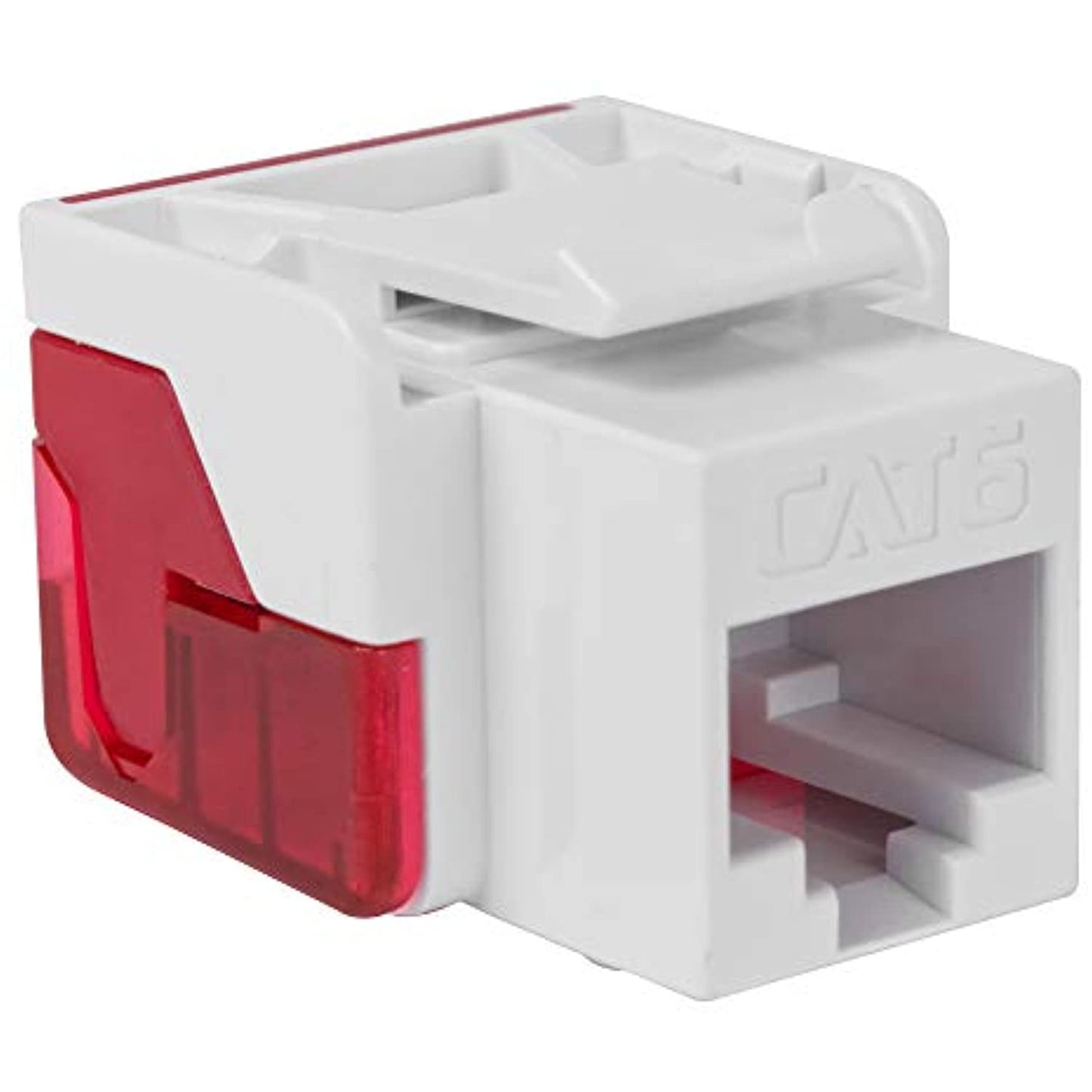

CAT6 RJ45 Keystone Jack,
ICC’s EZ Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C). This jack is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The EZ connector’s flat back IDC construction offers faster installation through its straight through in-line termination design and one piece Snap-on termination cap.
Features:
- CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
- PCB technology provides maximum performance and superior signal quality
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements
- Designed with in-line 110 IDC, in-sequence termination reducing termination time
- Terminate with 110 punch down tool ICACSPDT00
- One piece termination cap allows for a quick and easy termination
- Includes an integrated TIA-568A/B color wiring diagram
- Backwards compatible to all lower rated category components
- Compatible with all ICC configurable faceplates, inserts, surface mount boxes, and blank patch panels
- Exceeds ANSI/TIA-568-C requirements for permanent, channel link and component performances
- UL 1863 Compliant
