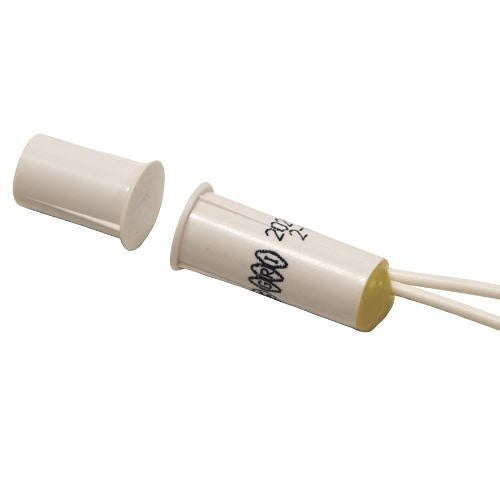

G.R.I.'s 3/8" recessed press-to-fit contacts can be installed in many different positions to accommodate a variety of applications. The switch and magnet can be mounted end-to-end within an imaginary arc around the switch, or parallel to the switch. When the application calls for a wide gap switch, install the painted end of the bare magnet facing the switch as they are polarity sensitive. The switch and magnet should never form a "T" configuration when installed.
Main Features
- GRI’s recessed switches are most versatile for a variety of applications, but the switch and magnet installed, should never form a “T” configuration.
- When the application calls for a wide gap switch, using a bare magnet, keep in mind that GRI’s bare magnets are installed with the painted end towards the switch as they are polarity sensitive.
- When protecting steel doors, use the GRI PA-75 collars with our wide gap switch.
