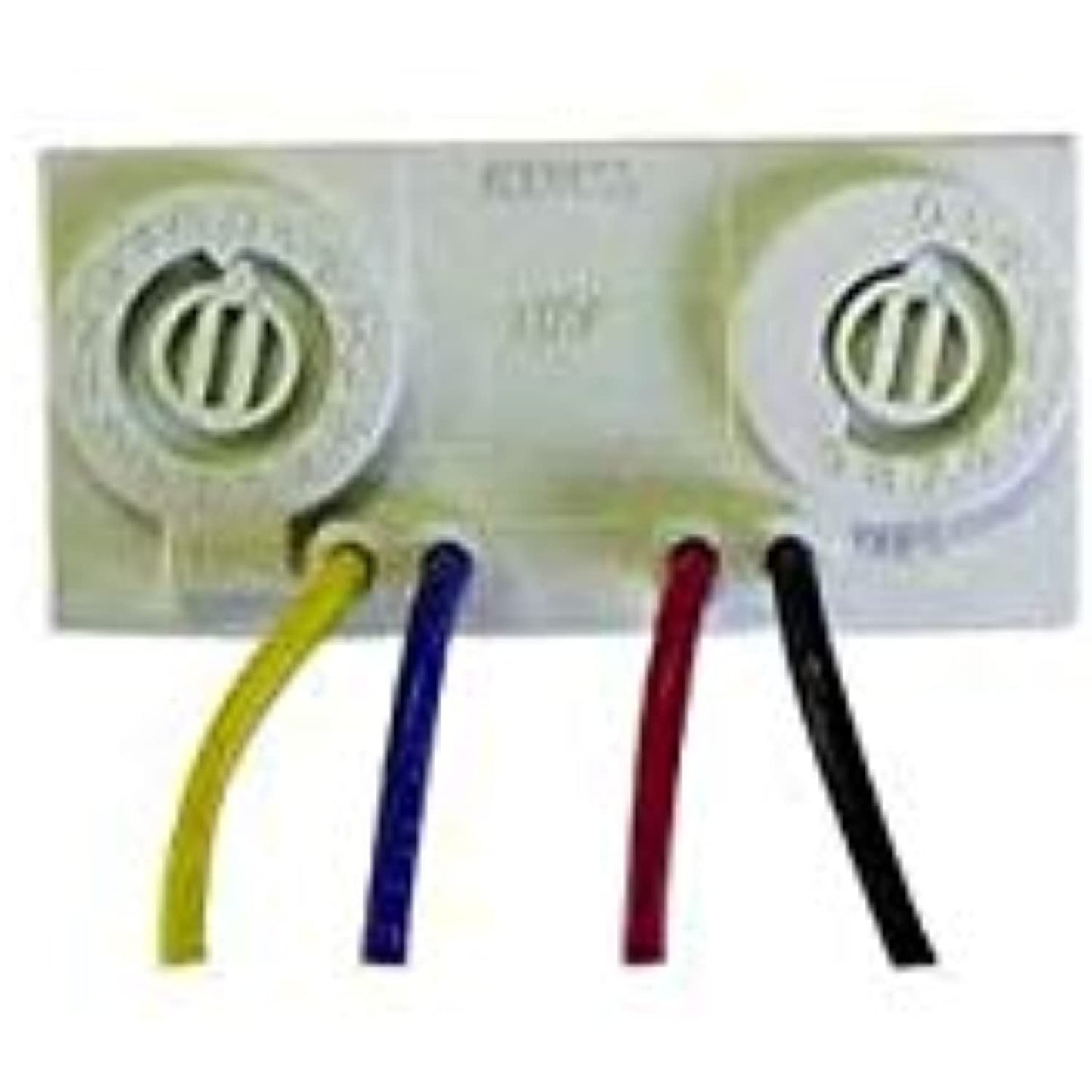

Fire-Lite MMF-301 Addressable Mini Monitor Module for Class B, Style B Circuit
MMF-301 is an addressable mini monitor module. It measures 1.3" (3.302 cm) H x 2.75" (6.985 cm) W x 0.65" (1.651 cm) D. The module supervises a Style B (Class B) circuit of dry-contact input devices. Its compact design allows the MMF-301 to be mounted in a single-gang box behind the device it monitors.
Main Features:
- Built-in type identification automatically identifies this device as a monitor module to the panel.
- Powered directly by two-wire SLC loop. No additional power required.
- High noise (EMF/RFI) immunity
- Supervises IDC wiring and connection of external power source.
- SEMS screws with clamping plates for ease of wiring.
- Direct-dial entry entry of address: 01 – 159 on MS-9600 series panels, 01 – 99 on other compatible systems.
- LED flashes during normal operation.
- LED latches ste
