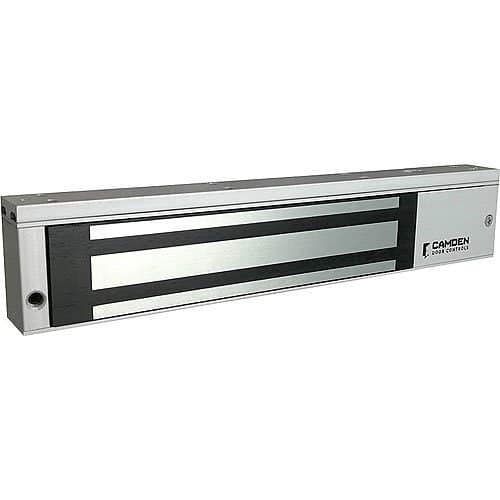

CX-91 Series 600 lbs. & 1200 lbs. Single Door Surface and Mortise Mount Magnetic Locks offer the best performance and value. A built-in ‘TLS’ option provides an adjustable timer, lock sensor, relay and LED. TDS option includes door status switch as well.

Camden’s Magnetic Locks are easily installed. A metal mounting template is packaged with the unit. Vandal resistant construction is built to last – lifetime warranty!

Main Features

• Includes Metal Mounting Template
• Weather and vandal resistant construction Ideal for Any Access Control Application
• UL1034, UL294 and ULC S533-15 Listed
• Field selectable 12/24 VDC operation
• Lifetime Warranty
• Compatible with All Door Types
• Aluminum Finish
• 600 lb. (272 kg.) Holding Force
• 12/24 VDC Input Voltage
• Surface Mount
• Dimensions: 1.12″ D x 1.62″ H x 9.87″ W
