Description
Lazerpoint RF™ is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz. spread spectrum wireless technology to the automatic door market. The system encompasses the widest range of transmitters, receivers, activation devices and switch enclosures available today. Lazerpoint RF™ receivers also supports 300MHz., 390MHz., and 433MHz. transmitters, with the use of optional daughterboards.

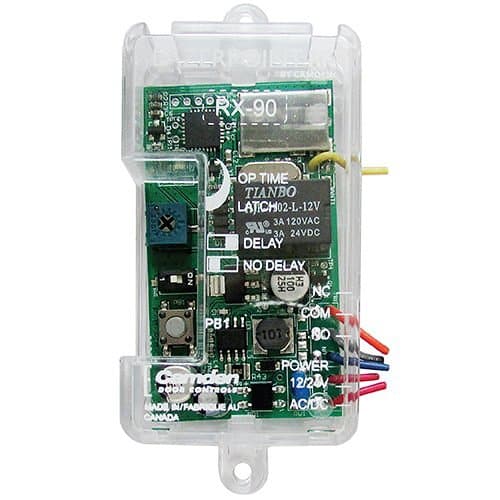

CM-RX-90 advanced receiver, with 1 relay, 3 operating modes (delay, non-delay & latching). Ideal for vestibule applications.
Main Features
- Wireless Frequency: 905.25 / 915.25 / 925.25 MHz. Spread Spectrum
- Power/Voltage: 12/24V AC/DC
- Contact Rating: 3A @ 30 VDC
- Status & Alarm Indicators: Relay status, signal strength, erase mode and pot position
- Output (1) SPDT relay, 3 modes
- Current Draw 23mA – 43mA
- Dimensions: 3-1/2”H x 1-1/2”W x 13/16”D (89mm x 38mm x 21mm)
