Description

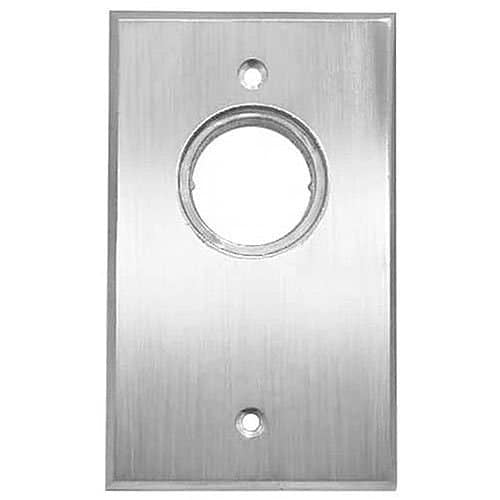

Camden Door Controls, CM-1000 Series surface mount switches meet the stringent demands of key switch controls. They are designed for use with standard 1”, 1 1/8”, or 1 1/4” mortise cylinders. Fabricated from 1/4” thick aluminum, into a one piece die cast construction, with unique Camden Door Controls features. All controls provide for one (1) or two (2) switch configurations.
The CM-1000 Key Switch is supplied with a weather resistant aluminum utility box, with a 1/2” threaded opening and close-up plugs. Also included are rubber gasket, brass cylinder lock ring, 4 socket/slotted screws, and 2 tamperproof screws with driver. (The mortise cylinder is available separately from Camden Door Controls). The design and construction make it ideal for all weather environments. The complete assembly is tamper and vandal resistant.
Main Features
- Heavy duty 1/4″ thick single gang aluminum faceplate with 1 piece construction
- Accepts standard mortise cylinders (1″ – 1-1/8″), sold separately
- Heavy Duty 6A contacts
- 3 Yr. Warranty
- Wall, Pipe Or Pedestal Mount
- 1 Piece Die Cast Construction
- Locators Prevent Cylinder From Spinning
- No Set Screws Required
- Vandal Resistant
- Cylinder Sits Flush To Faceplate
