Description

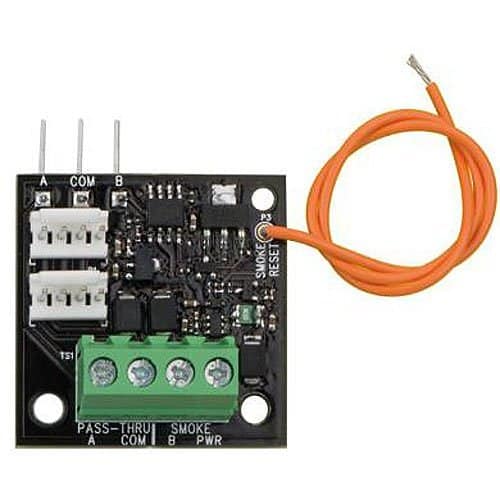

The B201 provides a single powered initiating device circuit. The module supports compatible 12 V 2-wire smoke detectors. The B201 is suitable for connecting powered, 2-wire fire or burglary devices. Use with a D132A Smoke Detector Reversing Relay Module for smoke detectors with integrated sounders.
Functions
The module connects to the control panel inputs. Terminals A and COM are a direct connection (passthru) point, and terminals B and PWR are a powered loop.
The powered loop uses a 1.8 k? EOL for supervision.
Main Features
- Suitable for use with 2-wire smoke detectors and burglary devices
- Supports up to 20 compatible smoke detectors
- Resets latching devices from the control panel
- Connects to the control panel terminal block with easy-to-install integrated pins
