Description

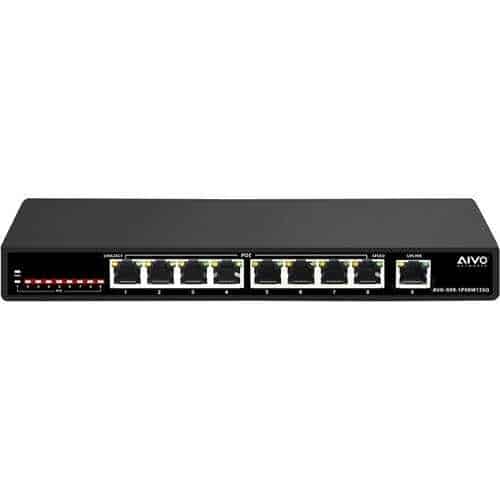

The AVN-S09-1P08W135G is compact 9 port Gigabit PoE/PoE+ switch, with all ports supporting 10/100/1000 Mbps auto-negotiation and Auto-MDI/MDIX. The 8 PoE ports can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras. All PoE ports support the IEEE802.3af/IEEE802.3at standard, with a maximum output of 30W per each port and a total PoE budget of 120W.
FEATURES
- IEEE802.3af / IEE802.3at Compliant
- 9 x 10/100/1000 Base-TX ports
- 8 x PoE / PoE+ ports, with each port supporting a 30W max. power output
- Total PoE budget of 120W
- Industrial rated power supply for increased stability
- 4K Entry MAC Address table with Auto-Learning and Auto-Aging
- High backplane bandwidth of 18Gbps
- IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- Advanced surge protection for both power and data ports
- Compact and durable metal case for better reliability
- EMI standards complies with FCC, CE class B
