Description

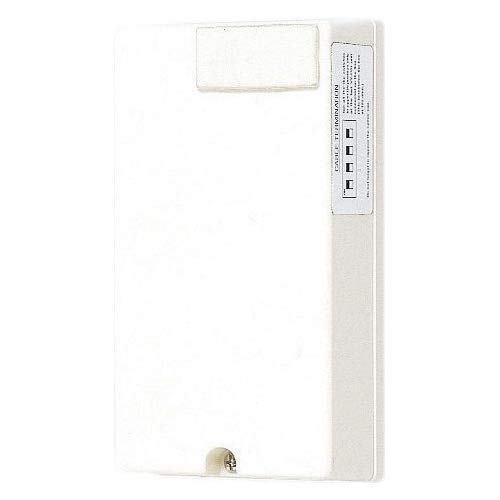

The RY-3DL provides selective door release capability with the KB-3MRD Video Sentry Color Tilt, JP-4MED Hands-Free Color Video, or IE-2AD(U) Chime Tone Intercom.
Main Features
- Provides selective door release capability
- Compatible with JP, JF, and KB
- Both normally open and normally closed output options
- Relay Input: 12-18V DC, Red, Gray wires, 22AWG
- N/O Output rating: 1A at 30V DC or 50V AC
- N/C Output rating: 1A at 30V DC or 50V AC
- Wiring: 4 conductors from Master Station to RY-3DL. 2 conductors from power supply to RY-3DL. 2 conductors from RY-3DL to release mechanism, with power wired in series.
- Dimensions: 5-1/2″ H x 3″ W x 1-1/2″ D
